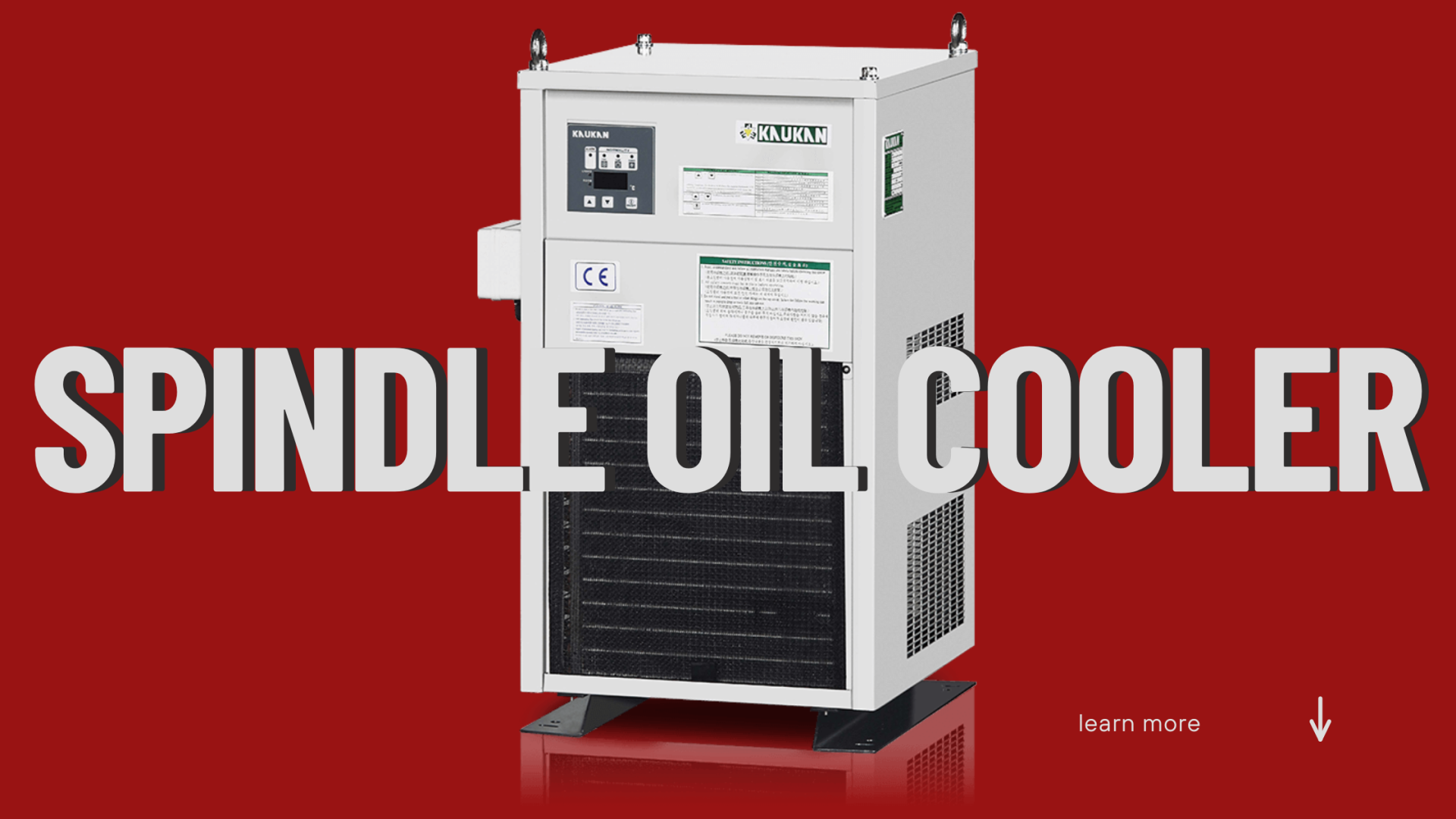

🧊 Spindle Oil Cooler – Technical Overview & Industrial Applications

🔧 What Is a Spindle Oil Cooler?

A spindle oil cooler, also known as a CNC spindle chiller, is a high-precision cooling device designed to regulate the temperature of CNC machine spindles and built-in spindle motors. It prevents thermal deformation, improves machining accuracy, and significantly extends spindle bearing life—especially during high-speed or continuous operation.

📌 Keywords: spindle oil cooler, CNC cooling system, spindle temperature control

💡 Why Is Spindle Cooling Critical?

During high-speed machining, the spindle generates substantial heat. Without proper thermal regulation, the machine may suffer:

• Thermal expansion → dimensional inaccuracies in finished parts

• Bearing overheating → premature wear or failure

• Mechanical distortion → reduced rigidity and cutting precision

Implementing a spindle oil chiller ensures a stable thermal environment, leading to better machining accuracy, surface finish, and machine longevity.

✅ Key Benefits of Spindle Oil Chillers

• Maintains dimensional stability for prolonged machining

• Prevents spindle vibration and acoustic noise

• Supports high-speed and ultra-precision CNC applications

• Enhances overall system thermal efficiency and reliability

✅ Optimized for mold manufacturing, optical parts, and aerospace machining

⚙️ How Does a Spindle Oil Cooler Work?

🔩 System Components:

• Compressor or thermoelectric (Peltier) cooling module

• Circulation pump for oil delivery

• Heat exchanger for rapid temperature transfer

• Oil reservoir for volume stabilization

• PID temperature controller with ±0.05°C–±0.1°C accuracy

🔁 Working Principle:

1. Heated oil is drawn from the spindle housing

2. Chilled through the internal cooling system

3. Recirculated to maintain a consistent spindle temperature

🧩 Model Selection by Spindle Type

🌍 Trusted Global Brands for Oil Chillers

🔍 Looking for reliable CNC cooling? These brands are used globally in advanced manufacturing.

🛢 Recommended Cooling Oil

• Oil Grade: ISO VG10–VG15

• Approved Oils:

  • Mobil Velocite No.6

  • Shell Morlina S2 B 10

⚠️ Do NOT use general hydraulic or lubricating oils—this can damage the cooling system and spindle bearings.

🧼 Routine Maintenance Guidelines

📅 Daily Checks:

• Oil level above minimum line

• No abnormal noise or vibration

• Outlet temperature within ±0.5°C

• Tubing clear with no deformation

🛠 Weekly Tasks:

• Wipe down outer panels (air or mild cleaner)

• Test and recalibrate setpoints

• Inspect oil clarity and discoloration

🔧 Monthly:

• Clean heat exchanger fins (compressed air)

• Re-tighten terminal connections

• Check compressor for irregularities

🔄 Semi-Annual / Annual:

• Replace spindle oil

• Flush internal cooling channels

• Inspect seals, sensors, and PID calibration

📊 Temperature Range & Control Integration

• Setpoint range: 5°C to 25°C

• Supports PID precision control down to ±0.05°C

• Compatible with CNC/PLC communication via RS485 or Modbus

🎯 Ideal for ultra-precision machining in electronics, medical, or aerospace sectors

🔔 Alarm & Protection Functions

Advanced spindle oil coolers come with:

• Control panel alerts or buzzers

• CNC/PLC warning integration

• Emergency cooling or auto shutdown

• Data logging for diagnostic records

🧠 Smart Integration for Industry 4.0

Selected models (e.g., RC-MULTI Series) support:

• Multi-circuit cooling: Spindle, hydraulic, and lubrication oil

• LCD diagnostics with historical logs

• Modbus/RS485 protocol for smart factory integration

🌐 Enable real-time monitoring and predictive maintenance across your CNC workshop
