Tool Holders & Tapers | Quick Guide for Machining Pros!

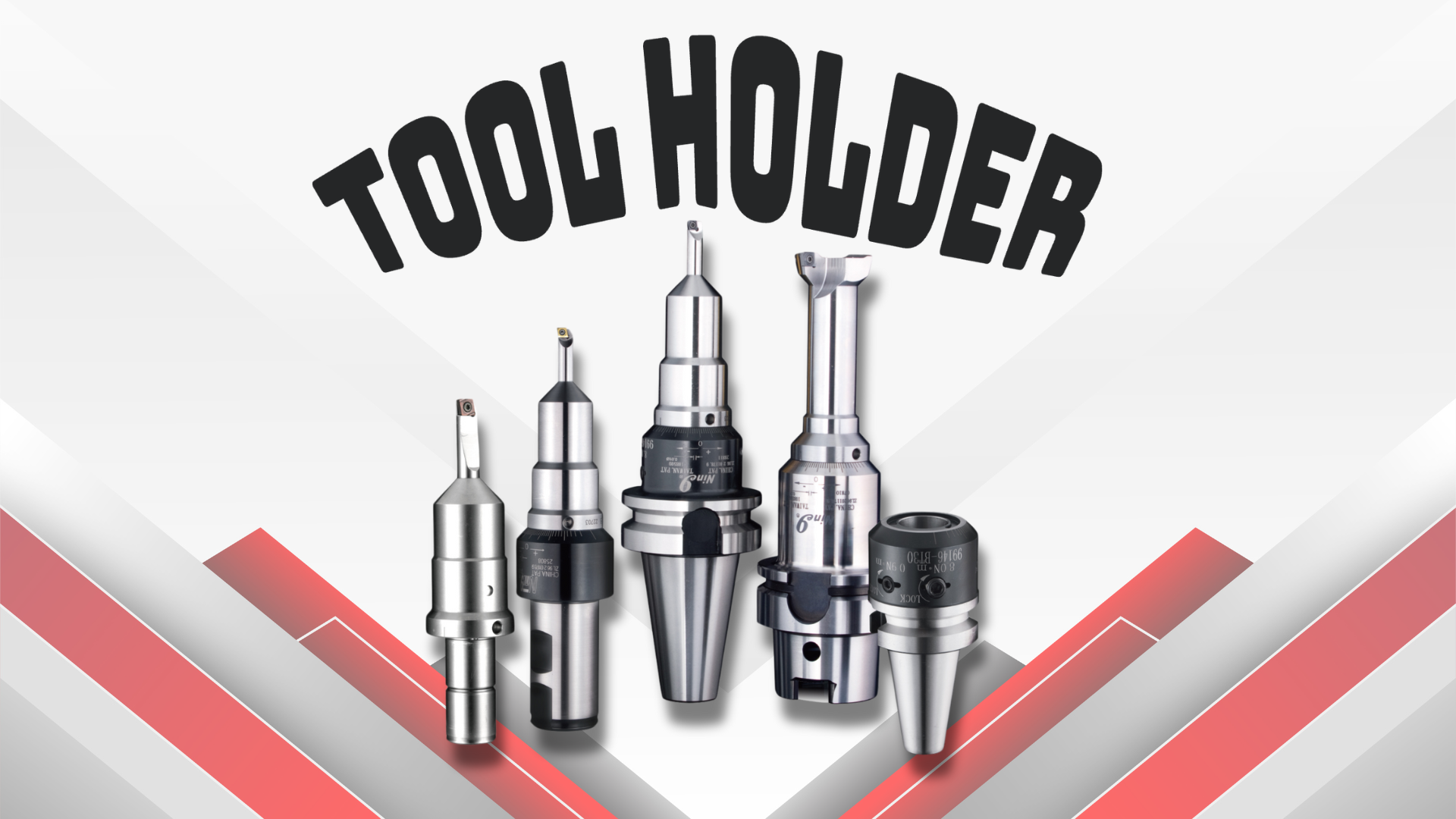

In the world of metalworking and CNC machining, the tool holder plays a critical role in linking the cutting tool to the machine spindle.
Choosing the right type of tool holder and taper directly impacts your machining accuracy, rigidity, and overall efficiency.
Here's a quick breakdown to get you fully geared up!
Two Key Factors When Selecting a Tool Holder
-
Shank Type – How the tool holder interfaces with the spindle
-
Clamping Mechanism – How the tool holder secures the cutting tool
Shank Type Overview
Depending on region and industry, taper systems differ:
1:10 Taper Systems
-
HSK: Preferred for heavy-duty industrial applications
-
BT/BBT: Widely used in Turkey, India, and similar markets
7:24 Taper Systems
-
CAT: Common across the U.S. and Canada
-
SK/ISO/DIN: Popular in European markets
🔧 Pro Tip
-
BT: Single-side clamping
-
BBT: Dual-contact clamping for enhanced stability
Tool Clamping Methods
The way your cutting tool is held matters just as much as the tool itself. Tool holders typically fall into two major clamping styles:
Direct Clamping Types
-
Hydraulic Tool Holders
-
Shrink Fit Tool Holders
-
Power Milling Chucks
-
Side Lock End Mill Holders
-
Face Milling Holders
Collet Clamping Types
A combination of nut + collet + tool holder body creates flexible clamping solutions. Common systems include:
-
HER Collet Chucks
-
PFK Collet Chucks
-
ER Collet Chucks
-
Tapping Chucks
Final Thought
The right tool holder and taper choice makes all the difference between an ordinary job and a perfectly machined masterpiece.
Stay tuned for more machining insights and maximize your shop’s performance! 🚀
