🌟 Cradle-Type 5-Axis Machining Centers – MTU Series

High Precision CNC Solutions for Aerospace, Medical, and Mold Industries

🚀 Engineered for Performance. Built for Precision.

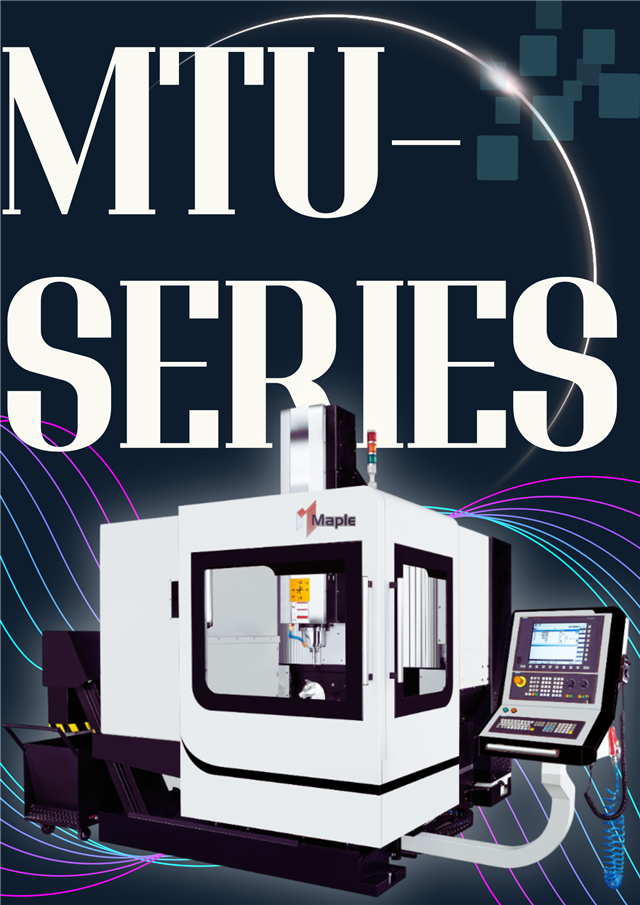

Introducing the MTU40 and MTU65, cradle-type 5-axis machining centers from Maple Technology — built for industries that demand extreme precision, multi-surface machining, and high-speed performance.

Whether you’re processing complex aerospace parts, medical-grade titanium components, or high-hardness molds, the MTU series is your reliable partner in next-generation CNC manufacturing.

✅ Key Specifications – MTU Series

Model

Travel (XYZB/C)

Table Ø

Max Load

Chip Removal

Spindle Type

ATC Options

CNC Controller

MTU40

600×360×400 mm / B: -30° C: 120°

Ø400 mm

150/

200 kg

Chain Type

BT40-12000 / HSK A63-20000 RPM

24T / 30T / 40T

Siemens 828 / 840 / HNC848

MTU65

820×520×500 mm / B: -30° C: 120°

Ø650 mm

200/

300 kg

Chain Type

BT40-12000 / HSK A63-20000 RPM

24T / 30T / 40T

Siemens 828 / 840 / HNC848

🌐 Tailored for High-Demand Applications

✈️ Aerospace Machining – Light weight alloys, curved surfaces, multi-axis precision
🏥 Medical Parts – Titanium, stainless steel, surgical-grade complexity
🚗 Automotive & Mold Making – High-hardness steel, cavity & core shaping
🧰 Tooling Industry – Complex angles, multi-surface cutting

⚙️ Why Choose the MTU Series?

🔧 Rigid Cradle-Type Structure for vibration resistance and long-term accuracy
💨 High-Speed Spindles up to 20,000 RPM for faster cycle times
🤖 Smart CNC Control Systems: Siemens 828/840 or HNC848
🔄 Flexible ATC options for batch or precision custom work
