ME-1060 Vertical Machining Center

High Rigidity | High Speed | High Precision

The ME-1060 Vertical Machining Center from Maple Technology Co., Ltd. is a high-performance solution designed to meet the demanding needs of modern machining industries. Engineered with a high-rigidity structure, advanced spindle options, and precision linear guideways, the ME-1060 is ideal for both high-speed light-duty machining and heavy-duty cutting operations.

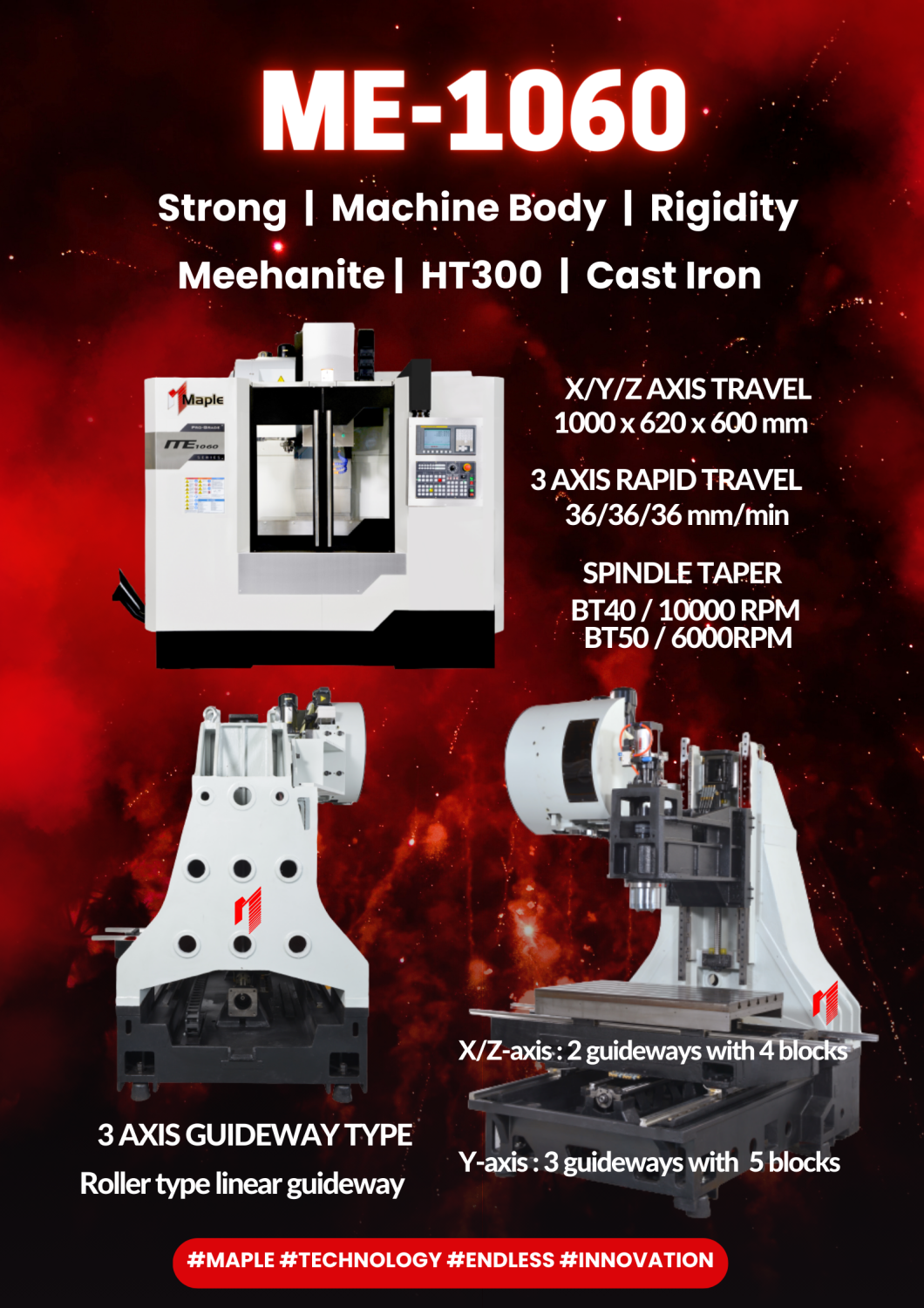

🛠️ Heavy-Duty Meehanite Cast Iron Structure (HT300 Grade)

The ME-1060 is built with a high-strength Meehanite HT300 cast iron body, ensuring excellent vibration damping and structural stability. This guarantees long-term precision and extended machine life even under heavy cutting loads.

📏 Travel & Feedrate Capabilities

• X / Y / Z Axis Travel: 1000 x 620 x 600 mm

• Rapid Traverse Rate (XYZ): 36 / 36 / 36 m/min

• Designed for superior positioning accuracy and cycle time reduction, the ME-1060’s rapid feed ensures optimal performance across a wide range of applications.

⚙️ Spindle Configuration Options

• BT40 Spindle: 10,000 RPM – optimized for high-speed machining and aluminum workpieces

• BT50 Spindle: 6,000 RPM – built for high torque, suitable for heavy-duty cutting

• Spindle Motor Output: 15 kW / 20 HP
  Customers can select the ideal spindle taper and speed based on material type and production requirements.

🧱 Precision Linear Guideway System

• All-axis design: Roller-type linear guideways for low friction and high rigidity

• X & Z axes: 2 guideways with 4 blocks

• Y axis: 3 guideways with 5 blocks
  This configuration enhances cutting stability and load distribution, maintaining high machining accuracy during long production runs.

🔄 Automatic Tool Changer (ATC)

• Equipped with a 24-tool automatic carousel-style ATC

• Supports fast and reliable tool change cycles, reducing idle time and increasing productivity

✅ Key Advantages

• Meehanite HT300 cast iron frame ensures long-lasting rigidity and thermal stability

• Flexible spindle options for both high-speed and high-torque operations

• Roller-type linear guideways provide outstanding dynamic rigidity

• Optimized for automotive, aerospace, mold making, and general precision component machining
